JavaScript SDK - Display a LegendView

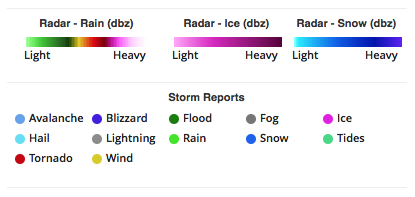

Render a legend view. The following example will display a legend view for the radar and storm reports layers.

Basic LegendView example


<!DOCTYPE html>
<html>
<head>
    <meta charset="UTF-8">
    <title>Xweather JavaScript SDK - Basic LegendView</title>
    <script defer src="https://cdn.aerisapi.com/sdk/js/latest/aerisweather.min.js"></script>
    <link rel="stylesheet" href="https://cdn.aerisapi.com/sdk/js/latest/aerisweather.css">

    <style>
    #legend {
        font-family: 'Helvetica','Arial',sans-serif;
        margin: 30px auto;
        width: 400px;
    }
    .awxjs__legend-view > .awxjs__legend {
        border-bottom: 1px solid #eee;
        padding: 8px 0;
    }
    .awxjs__legend-view > .awxjs__legend:first-child {
        border-top: 1px solid #eee;
    }
    </style>

</head>
<body>

<div id="legend"></div>

<script>

    window.onload = () => {

        const aeris = new AerisWeather('CLIENT_ID', 'CLIENT_SECRET');

        aeris.views().then(views => {
            const legend = new views.Legend(document.getElementById('legend', {
                size: {
                    width: 400
                }
            }));
            legend.set(['radar', 'stormreports']);
        });
    };

</script>

</body>
</html>
